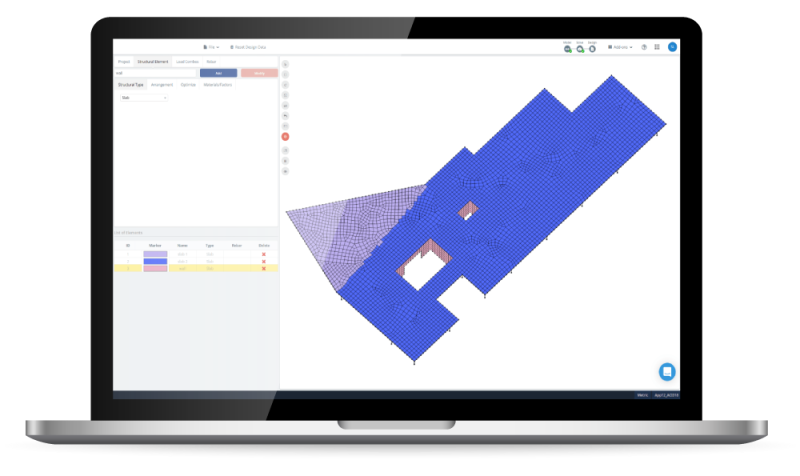

SkyCiv Slab Design Software
Design floors quickly and easily using powerful meshing, analysis, and optimization functionality. Design complex slabs (via plates) from SkyCiv Structural 3D analysis software. The software allows users to easily assign different reinforcement regions, perform design checks and optimize reinforcement as per ACI, EN and Australian Standard requirements.
This design module combines slab design with the easy-to-use analysis and modeling capabilities of SkyCiv Structural 3D.
WHY ENGINEERs SWITCH
Structural analysis software that runs the full workflow
Easy and powerful FEA analysis
Run linear, non-linear, buckling and dynamic analysis within a single solver. No separate modules for complex analysis types.
Integrated design checks
Steel, concrete, timber and cold-formed design modules run directly on your analysis results. No exporting, re-entry or version mismatches.
Detailed calculation reports
Every formula, design check and
reference is shown in full, so you can defend every number, not just the result.
WHY ENGINEERs SWITCH
What SkyCiv Concrete Slab Design Software Offers
Capabilities for modelling and analysing simple to complex structures.

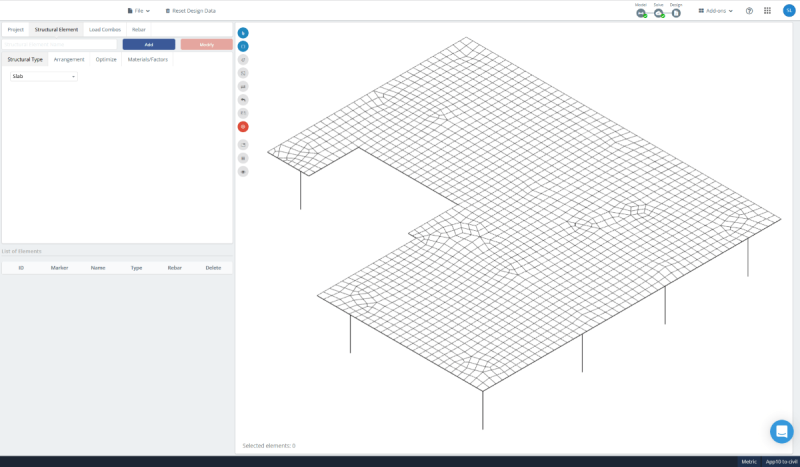

Powerful meshing
Mesh any complex S3D model
Auto-generate your meshing in seconds
Import meshes from other software (coming soon)
Pick from a range of meshing methods including frontal, adaptive, delaunay, and parallelogram packing
Control mesh sizes and granularity
Automatically detect and attach columns, members, and cutouts
Reinforcement design
The software is built on SkyCiv Structural 3D, which includes powerful FEA capabilities. The software imports the results of this analysis into the final design calculations.

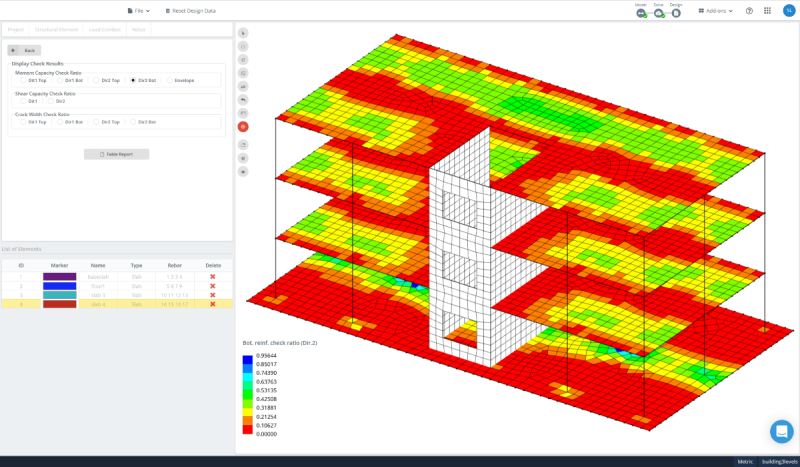

Once the reinforcement is defined, design check ratios are clearly displayed using a color-scaled result with an accompanying scale.
Results are displayed in both directions for moment, shear, and cracking requirements.

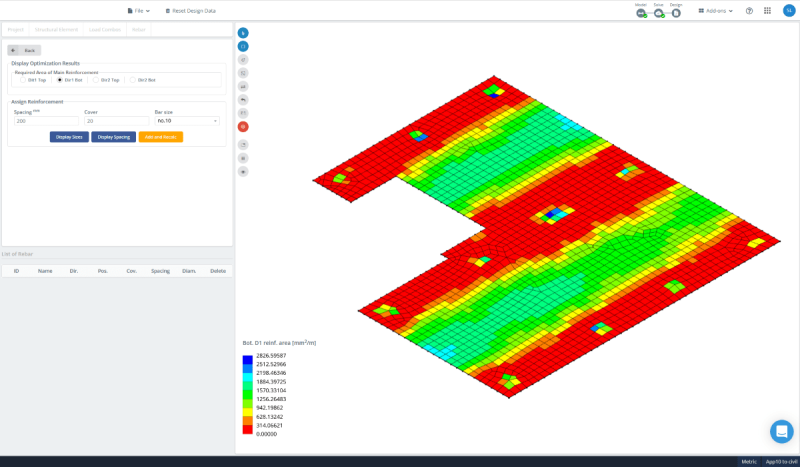

Reinforcement optimization
The SkyCiv slab and wall design module also has the capabilities for reinforcement optimization and checking based on different criteria, including concrete cover, rebar orientation, rebar spacing, member type, and others.
Control the domains or regions to design under different reinforcement settings, to help minimize materials and design more efficiently.
Design on-way and two-way slabs as well as walls subjected to the combined membrane and plate load components. The design check of slabs is based on the Wood-Armer method.
The software currently supports ACI 318 2019, AS3600 2018 and EN 1992-1-1:2004 design standards.
