WHY ENGINEERs SWITCH
Structural analysis software that runs the full workflow
Easy and powerful FEA analysis
Run linear, non-linear, buckling and dynamic analysis within a single solver. No separate modules for complex analysis types.
Integrated design checks
Steel, concrete, timber and cold-formed design modules run directly on your analysis results. No exporting, re-entry or version mismatches.
Detailed calculation reports
Every formula, design check and
reference is shown in full, so you can defend every number, not just the result.
WHY ENGINEERs SWITCH
What SkyCiv Truss and Frame offers
Capabilities for modelling and analysing simple to complex structures.

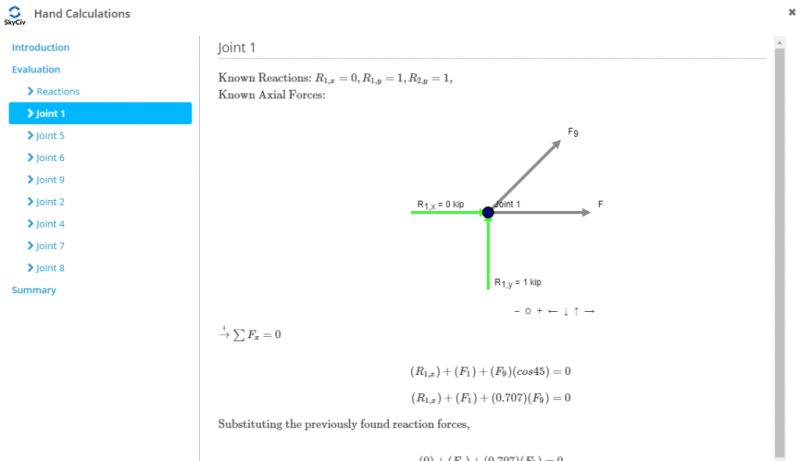

Full hand calculations
SkyCiv 2D Truss also comes with full hand calculation features – which clearly show the step-by-step calculations for both the method of joints and the method of sections. This interactive learning module helps students follow the hand calculations of how to solve a truss:
Step 1: Model your truss in S3D using the Truss Builder.
Step 2: Click “Solve” to transition to the results section.
Step 3: Click the “Truss Hand Calcs” button highlighted in the image.
Step 4: A pop up will come up with the hand calculations.

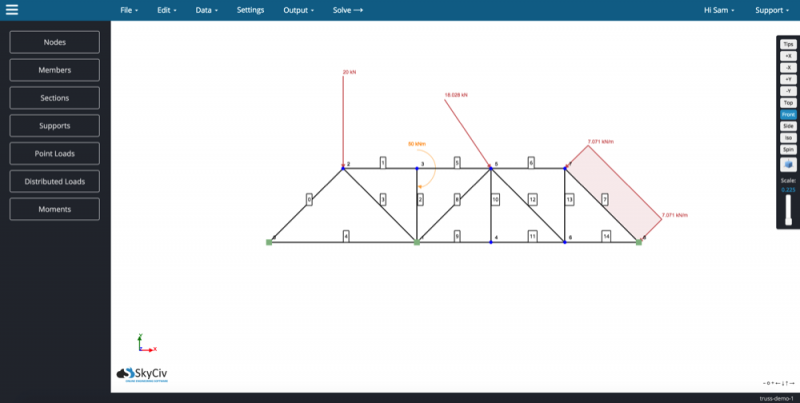

Unlimited Loading Scenarios
Design and setup your 2D Truss Analysis with SkyCiv Trusses Calculator or SkyCiv Frame Software:
Add up to 10,000 Members
Add Unlimited Supports with full control over their restraint codes (i.e. use any support type you like)
Add Unlimited Point Loads
Add Unlimited Distributed Loads
Add Unlimited Moments
SkyCiv 2D Truss
Simplified 2D truss analysis software
The SkyCiv Truss Software can add 10,000 members, supports, and loads compared to the Free Truss Calculator which is limited
Fixities are set as pin connections (FFFFRR) for proper truss behavior
Add as many supports and loads as you like, SkyCiv Truss can solve in
The reactions at each support are solved and displayed in the Free Body Diagram (FBD)

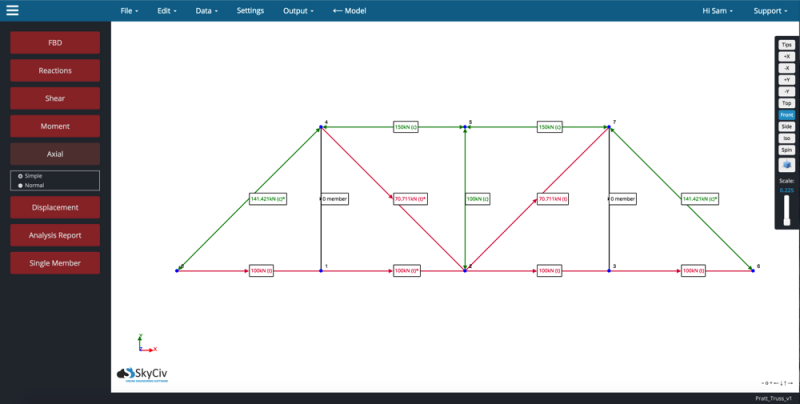

Clean internal axial force results in a fast and neat diagram for use in your assignments or to check your results!
SkyCiv 2D Frame
Simplified 2D frame analysis software
The SkyCiv Frame Software can add 10,000 members, supports, and loads compared to the Free Tool which is limited software
Fixities are set as fixed frames (FFFFFF)

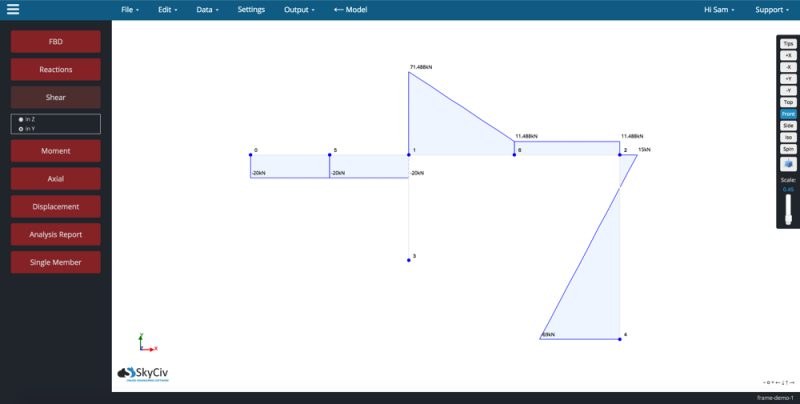

Results for: Reactions at supports, bending moment, shear and axial forces
For all other results, users can use SkyCiv Structural 3D which comes with all subscriptions
Add cross-section properties using SkyCiv Section Builder
Fast and neat diagrams will be produced for use in your assignments or to check your results
Save, load and share your files
Truss systems and frames can often take a long time to set up. Continually entering the same structure every time you want to test it is a pain. That’s why the SkyCiv Roof Truss Calculator and Frame software allows you to save and load from your cloud storage.
Since our software is on the cloud, you can also share and collaborate on models with your team in real-time. Work as a team, or across multiple devices, with SkyCiv’s cloud truss and frame analysis software.
supported standards
Globally Supported Design Standards
Capabilities for modelling and analysing simple to complex structures.
DESIGN STANDARDS
Structural design codes
Complete support for local design standards across steel, concrete, timber and more
| Category | Supported Codes |
|---|---|
| Steel design | AISC 360, AS 4100, CSA S16, BS 5950, Eurocode 3 (EN 1993), IS 800, NZS 3404 |
| Reinforced concrete | ACI 318, AS 3600, Eurocode 2 (EN 1992), CSA, BS |
| Timber design | NDS, AS/NZS 1720, Eurocode 5, CSA |
| Cold-formed steel | AISI, Eurocode, AS/NZS 4600 |
| Connection design | AISC 360, Eurocode, AS 4100 |
| Wind and seismic loading |
the skyciv difference
Make the Switch to SkyCiv
Everything your team needs to work faster,
from anywhere.
Work faster with integrated workflows
Your model integrates with more tools, saving you time and energy. Design faster, smarter and with less margin for error.
Skip the Installation
SkyCiv runs entirely in the cloud. No downloads, updates, or IT setups are required. Simply log in from any browser and start working instantly.
Engineering Support
When issues arise, our qualified engineers will quickly help you resolve them, keeping your projects on track without delays or downtime.
Easy input, easy output
SkyCiv models take minutes to set up, and the results are all clearly labelled – accompanied with detailed design reports for full calculation transparency.
Powerful Integrations,
Zero Disruption
testimonials
Trusted by thousands
160 +
Countries using SkyCiv
30 min
Average response time
The ease of use and the presentation of the results are both awesome. I have had ongoing interaction with the support team and everyone is excellent.
Mitch Frumkin
CEO OF KIPCON
It was easily the most intuitive package available to learn; it is particularly easy to build the 3D model and define nodes, members, supports, materials, sections, then apply loads & combinations.
Stuart Agars
Managing Director of Struct-Sure Limited
It is used for various civil and mechanical engineering courses and the students love it. We are happy with the continuous updates to SkyCiv as well, highly recommended.
Dr Kenneth R. Leitch
Assoc. Prof. at Texas A&M
SkyCiv has been a great tool to help efficiently and clearly document and update design results for a member of a small company with multiple responsibilities.
Lydia Fahrenkrug
Engineer at MT Solar
case studies
Real projects using SkyCiv
PRICING
Access SkyCiv Quick Design
Flexible plans for every team size.
No lock-in contracts, cancel anytime.
